Light designed into the thinnest section
Backlit stone that glows through the carving, not just behind it.
A backlit panel is designed around its thinnest point. Where the stone is carved thin, light comes through; where it stays thick, it holds back. Relief carving turns that difference into a drawing made of light.
01Made to orderDrawings and references developed for stone.
02Cut and hand-finishedMachined geometry resolved at the carving bench.
03Coordinated supplyApproval, numbering and packing planned for the work.
Illuminated work already made

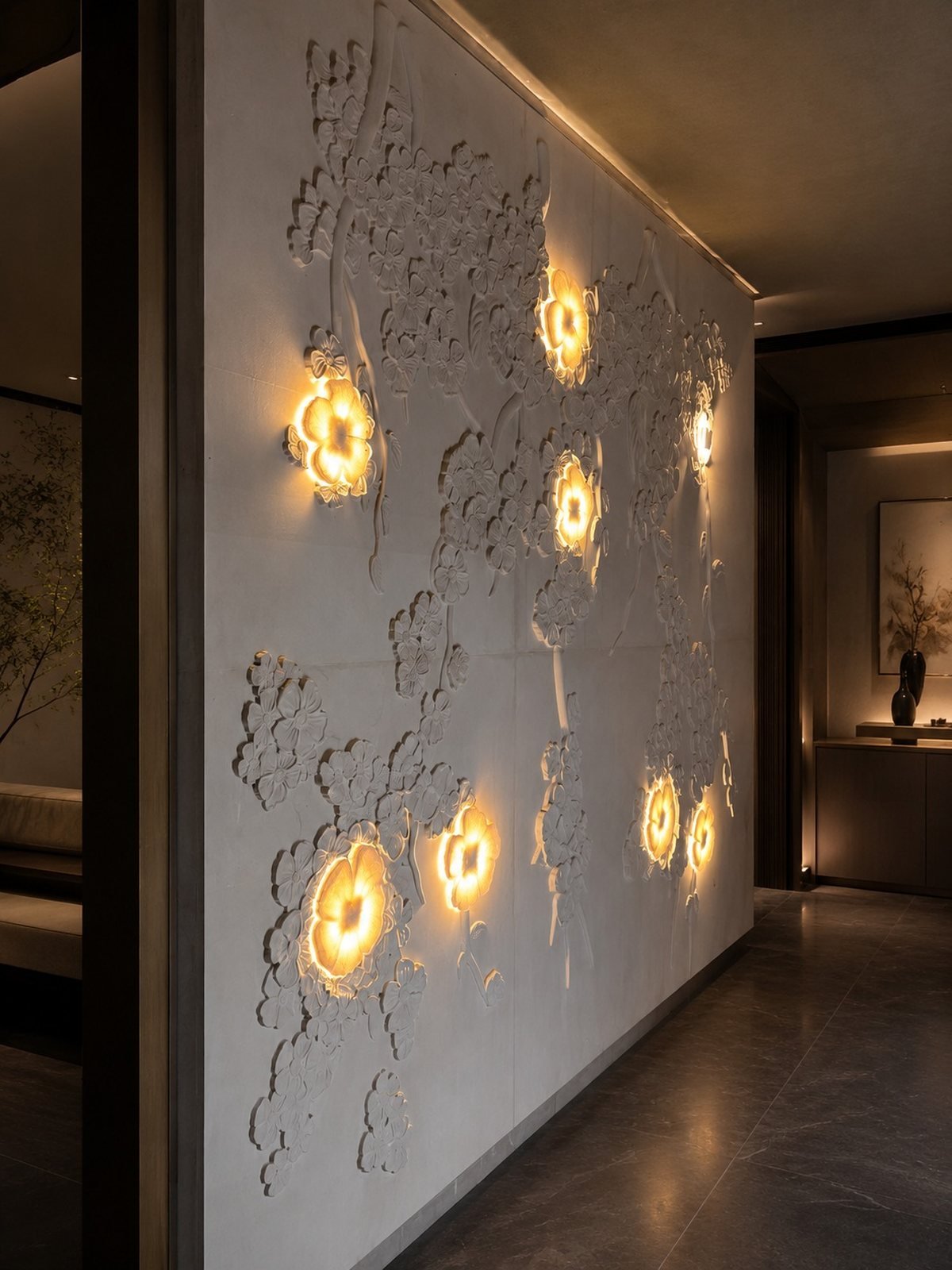

The workshop has carved a backlit marble blossom wall, a beige limestone contour relief lit from behind and a white marble and gold tiered temple shrine with backlighting. Each uses the same principle: the design decides where stone is removed, and the removal decides where light appears.
Because depth now controls brightness as well as shadow, a backlit relief is drawn twice: once as a surface seen in daylight and once as a glow seen with the lights on.
- Backlit marble feature walls
- Illuminated limestone relief
- Backlit shrine and mandir elements
- Relief combined with brass or stone inlay
Which stones transmit light, and how much
Many white marbles and some limestones pass light when carved thin, but translucency varies between quarries and even between blocks. There is no universal thickness that guarantees a glow, so the effect is tested on a sample from the actual block under the intended light source before a wall goes into production.
Veining that is quiet in daylight can become strong when lit from behind. Sequencing panels from one block keeps that pattern continuous across joints.
Light source, heat and access
The lighting system is normally specified by the project's lighting designer or electrician. Stonegraph coordinates the stone thickness, the gap needed for even diffusion, panel sizes, supports and service access with that design, so the glow stays even and the lights can be maintained without removing carved stone.
Thin sections are fragile, so backlit panels are braced individually for transport and numbered to the setting-out information. Overseas supply follows the supply-only model: the client's installer fits stone and lighting on site.
Practical answers
Questions before a stone brief.
- 01Which stones can be backlit?
- Many white marbles and some limestones transmit light when carved thin. Results vary between blocks, so the effect is confirmed on a sample under the intended lighting.
- 02How thin must stone be to glow?
- There is no single figure; it depends on the stone and the light source. The panel is designed around its thinnest section, and relief depth creates the difference between bright and dark areas.
- 03Does Stonegraph supply the lighting for a backlit wall?
- The lighting is normally specified by the project's lighting designer or electrician. Stonegraph coordinates stone thickness, diffusion gap, supports and service access with that design.
- 04Can backlit stone panels be shipped internationally?
- Yes. Thin panels are individually braced in reinforced crates and numbered for installation by the client's local team.
Begin with what you have
Send the drawing, dimensions or reference.
Include the setting, preferred stone if known, quantity, delivery location and required date. The workshop can then respond with the missing technical questions.
